This Article Describes Steps how to debug and resolve when you see Internal server error while accessing RMM GUI



Background:


1) Deployed  RMM 7.4.0.514 software on OCI cloud

2) RMM is in private subnet
3) No  bastion host to connect the RMM GUI

4) OCI bastion service  created with  port forwarding tunnel for port 443
5) Access the RMM GUI using https://localhost:9000

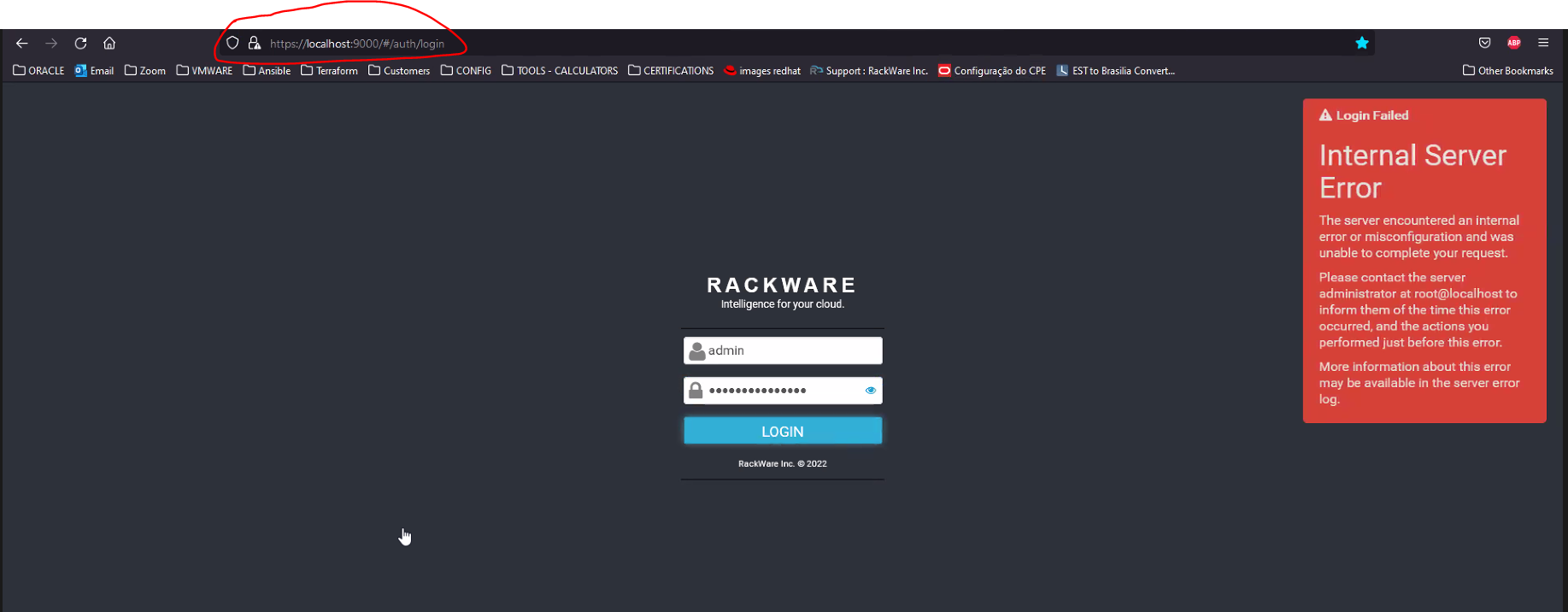

6) Observe below Error

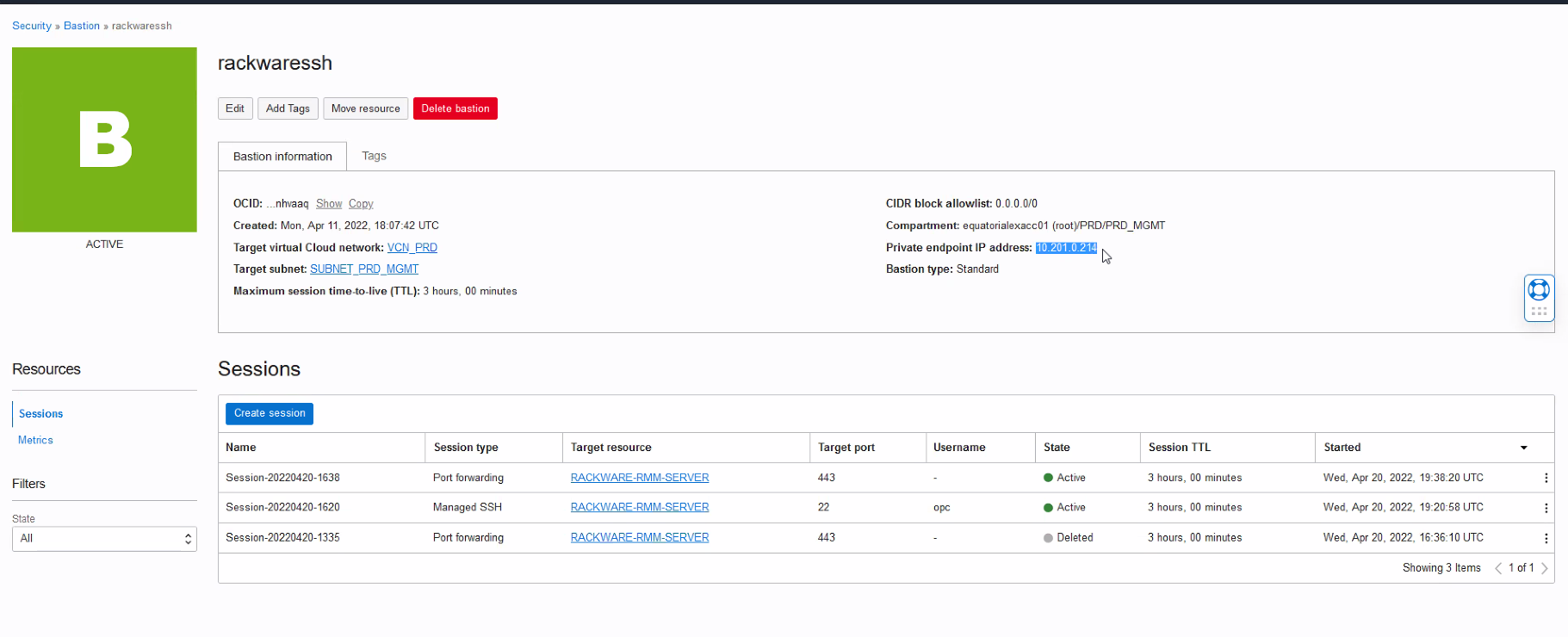

Bastion Session configuration



Use case:


Customer wants to access the GUI using bastion service



Preparation:


This activity is to be performed when all the DR Policies have been paused and there are no sync’s currently in progress.



Steps to resolve the issue:



check on the below file exists on  RMM ? make sure it is non-empty, and has valid permissions?

# ls -l /opt/rackware/www/rw_rest/conf/rwcli-options.json

-rw-r--r-- 1 apache apache 71307 Apr  6 16:52 /opt/rackware/www/rw_rest/conf/rwcli-options.json


Please run the below cmd



rw help --all-options > /opt/rackware/www/rw_rest/conf/rwcli-options.json

or:

cd /opt/rackware/www/rw_rest/conf/

rw help --all-options > rwcli-options.json

After the above steps Perform
 rwadm restart all


Then  access the GUI now
