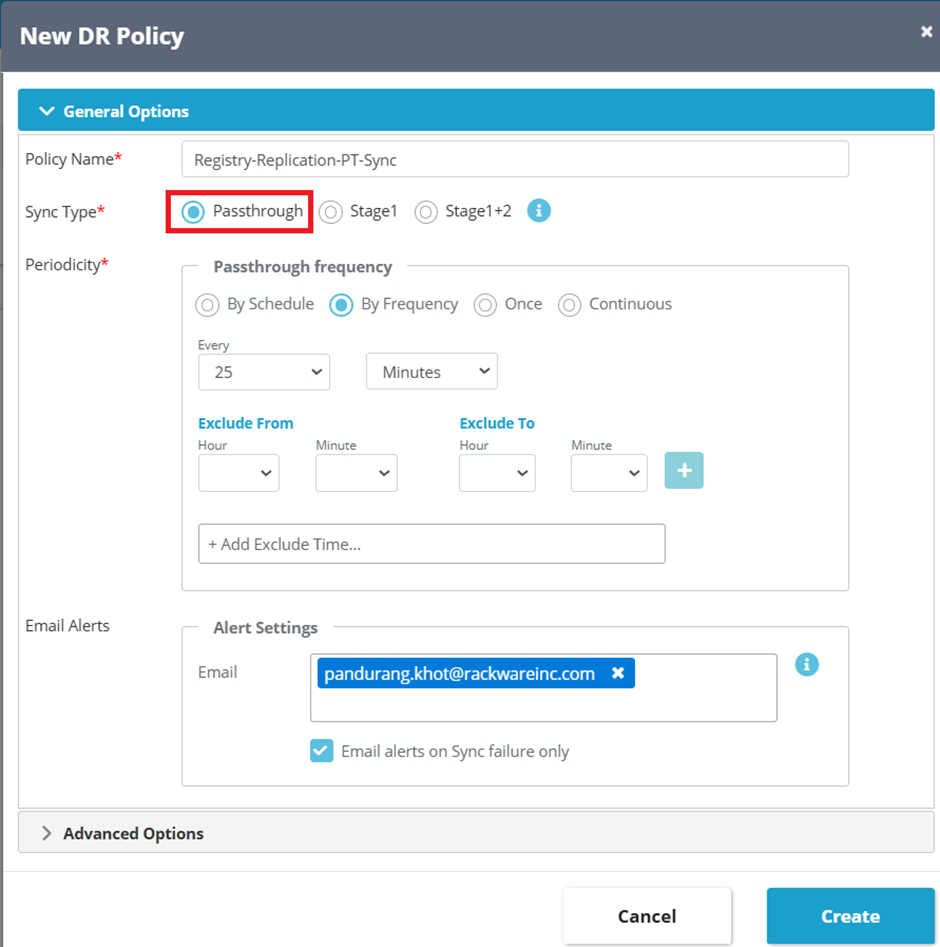

1. Go to the DR Policies under Business Continuity & DR on SWIFT and click on ‘New’ button, now it will give you one window that you must create a DR policy. Please see below snippet.
  2. Also, please note that we only perform Registry Replication with the Passthrough DR policy. Stage1 and Stage2 are not supported currently.

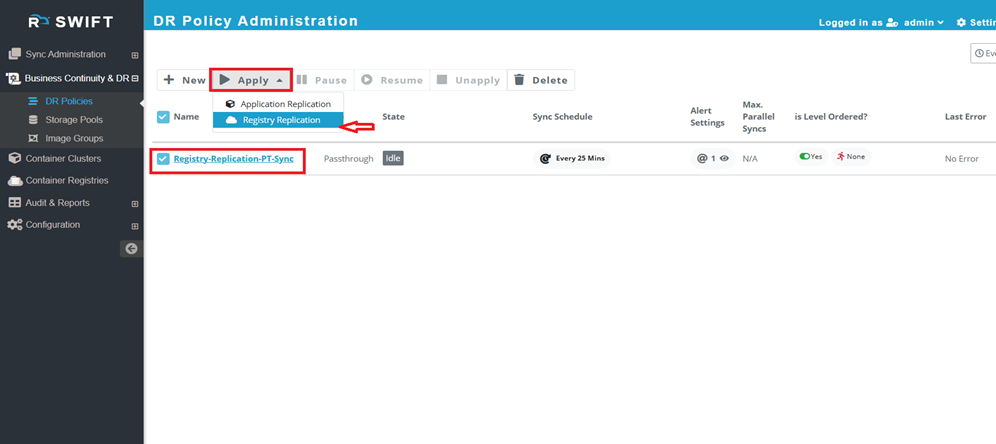

  1. After creating a DR policy , select the DR policy and click on ‘Apply’ button and select ‘Registry Replication’.

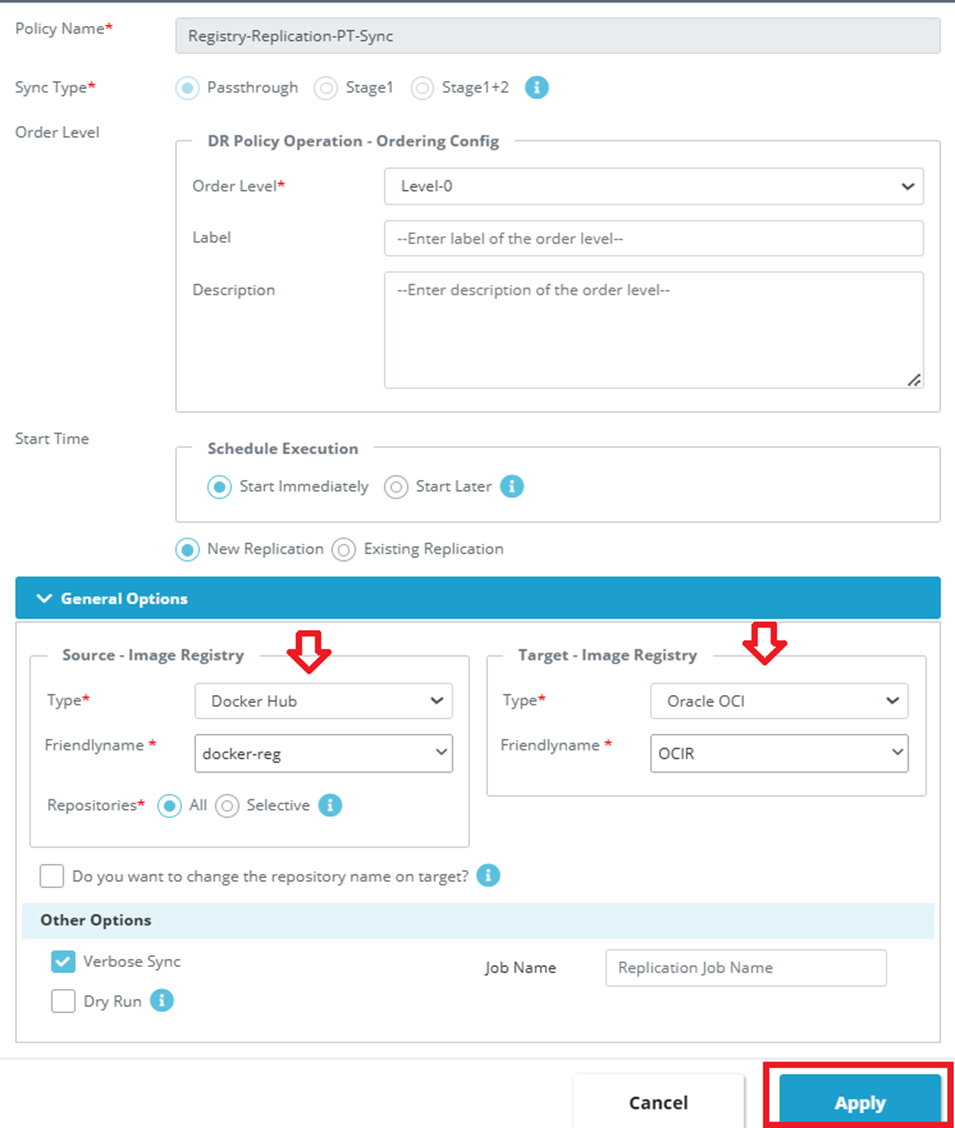

  1. Once you click on Registry Replication, then you will see a below screen that you have to source image registry and target as well.
  2. Also, you will have to choose Friendly name that you have added image registry in ‘Container Registry’ tab. And click on ‘Apply’ button to start the replication.
  3. We support multiple image registries for eg. Docker, GCR, OCIR, ICR, ACR etc.
