This section highlights the steps to create an account under your OCI cloud tenancy, which you can use later to configure the cluster details under your installed SWIFT. The same credentials can also be used later to discover an Oracle Cloud Infrastructure Container Registry (OCIR) instance or add an OCI cloud object storage under your SWIFT.

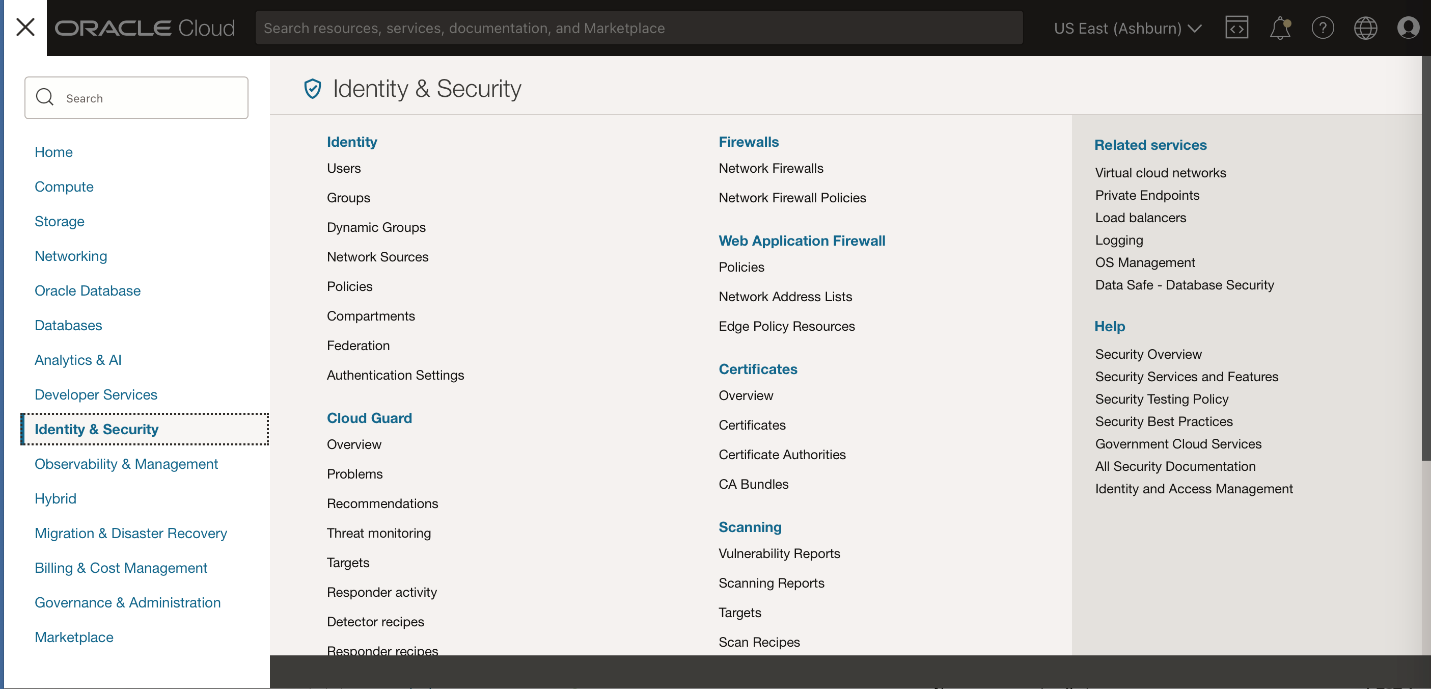

1. Login to OCI console Select the ‘Identity & Security’ submenu from the top left menu and then select ‘Groups’ option. We will create a Group, a Policy, and then finally a User.

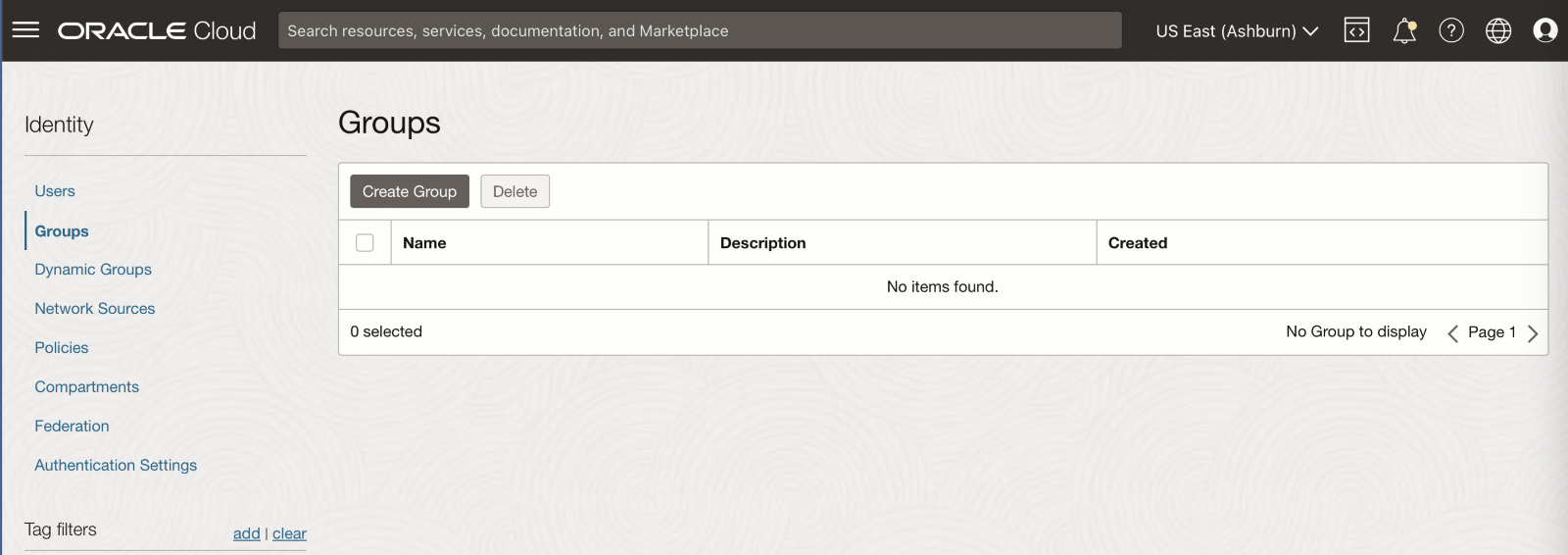

2. Press the ‘Create Group’ option.

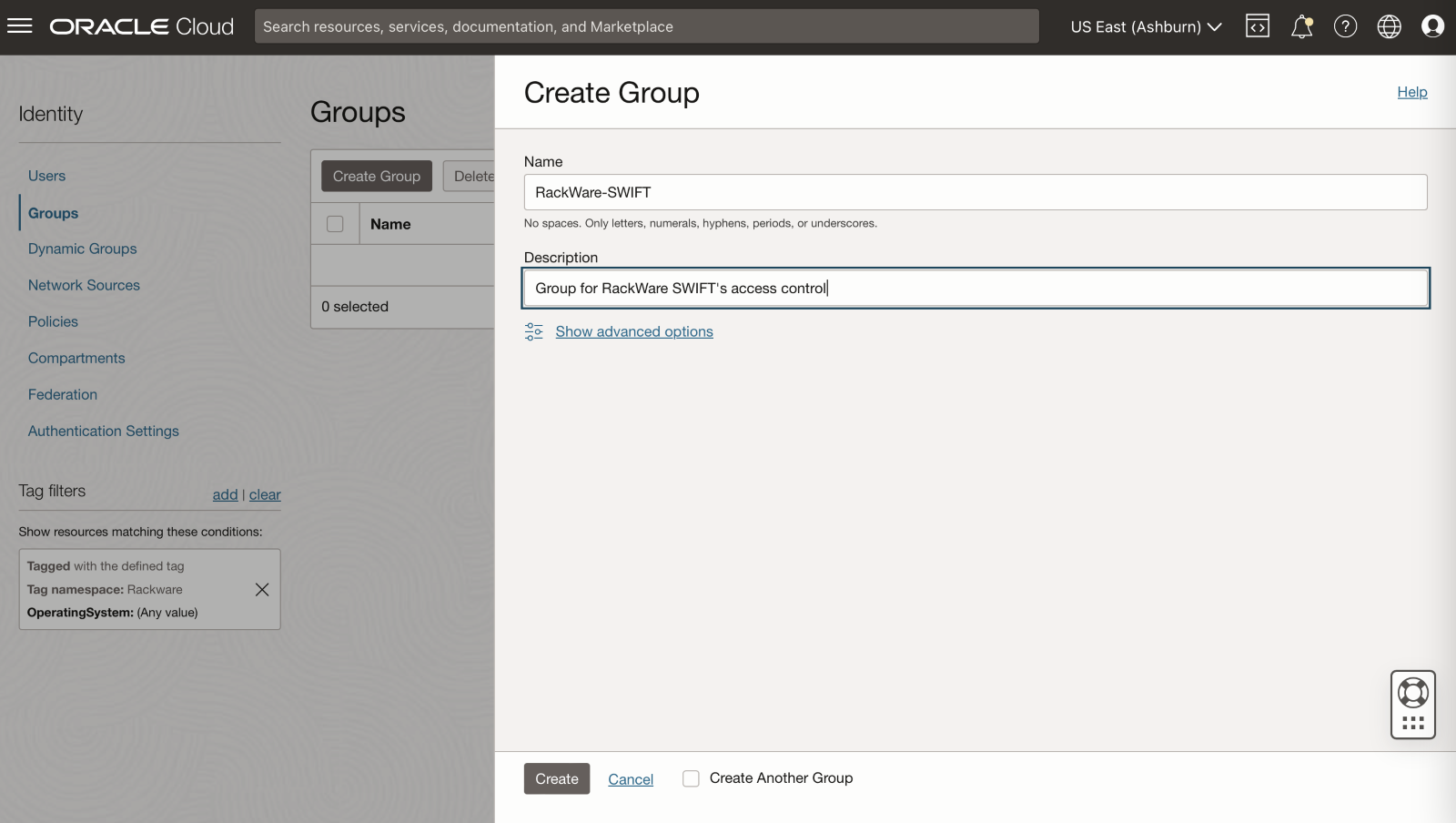

3. In the new ‘Create Group’ wizard, set appropriate name and description. In this example case, we will name it 'RackWare-SWIFT.’

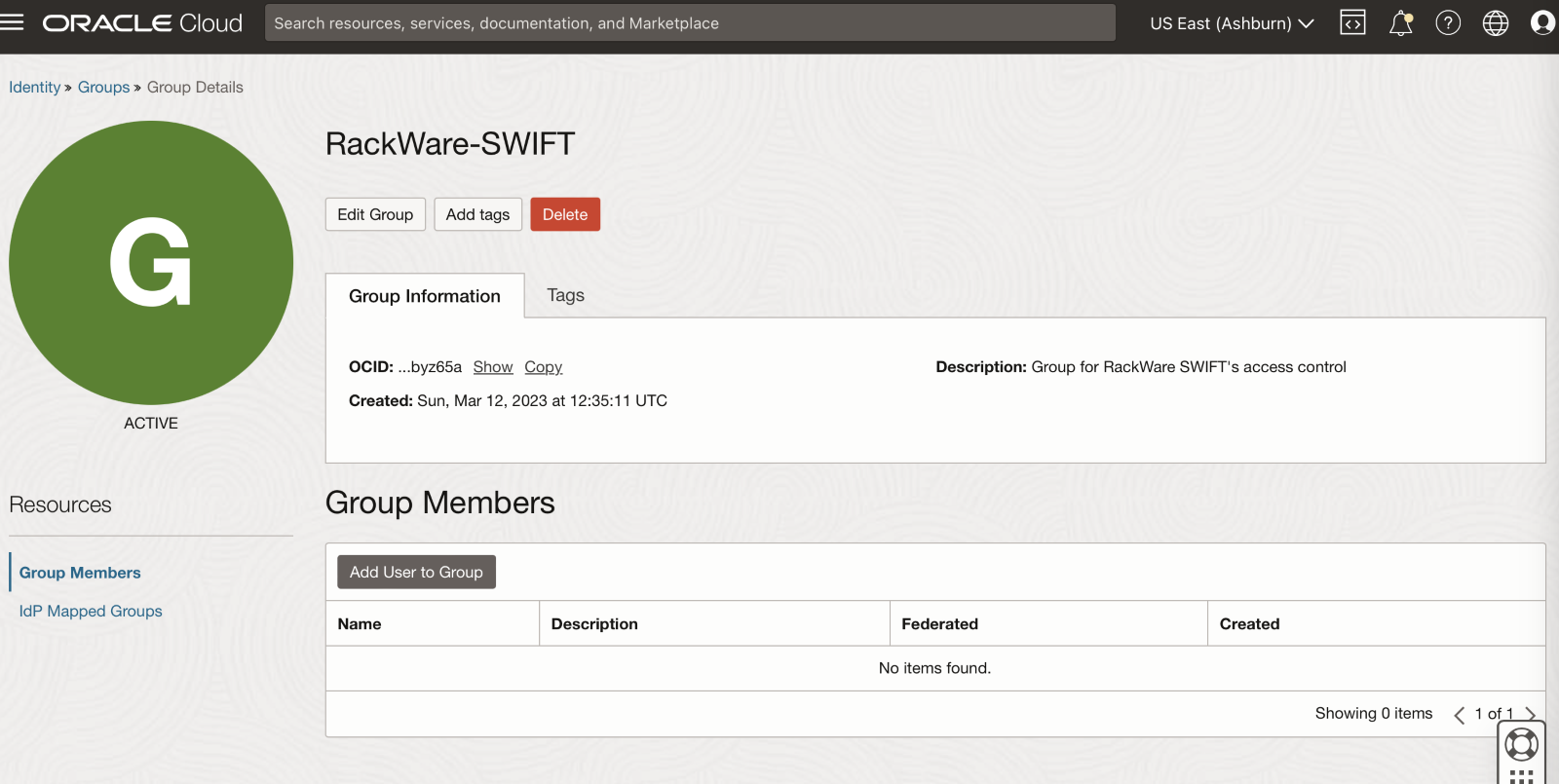

4. Once the group is created, we are ready for the next step of creating a Policy.

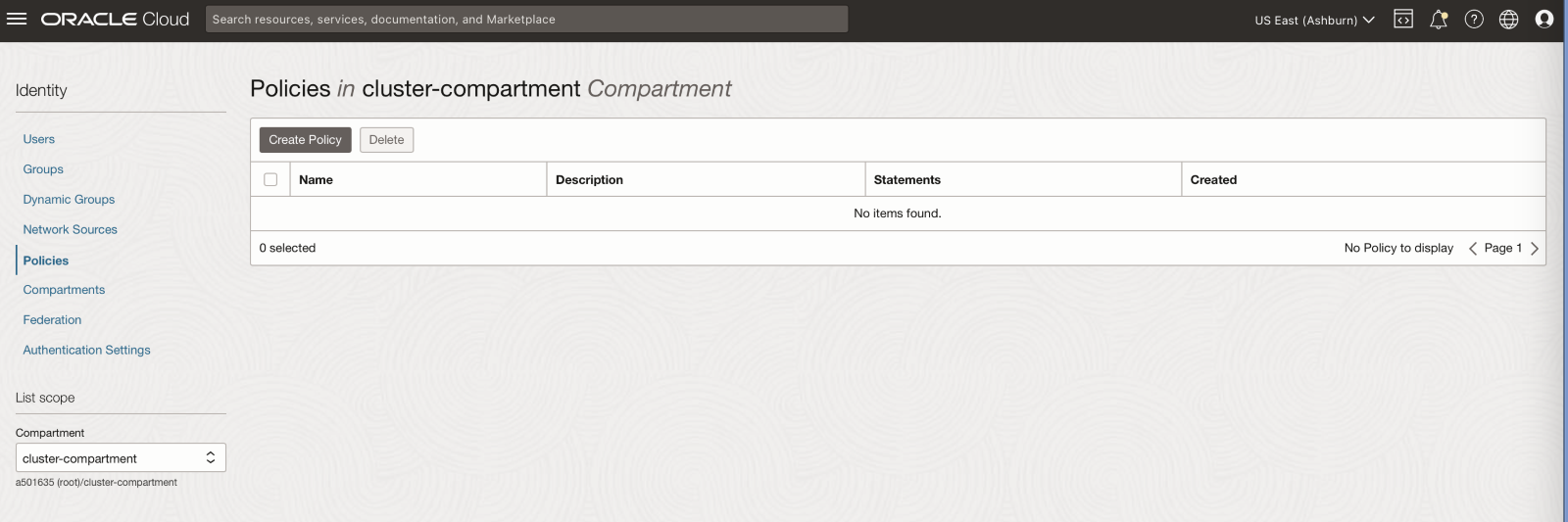

5. From the Identity menu, select ‘Policies’ submenu. Select compartment where OKE clusters or OCIR registries are located. Then press the ‘Create Policy’ button.

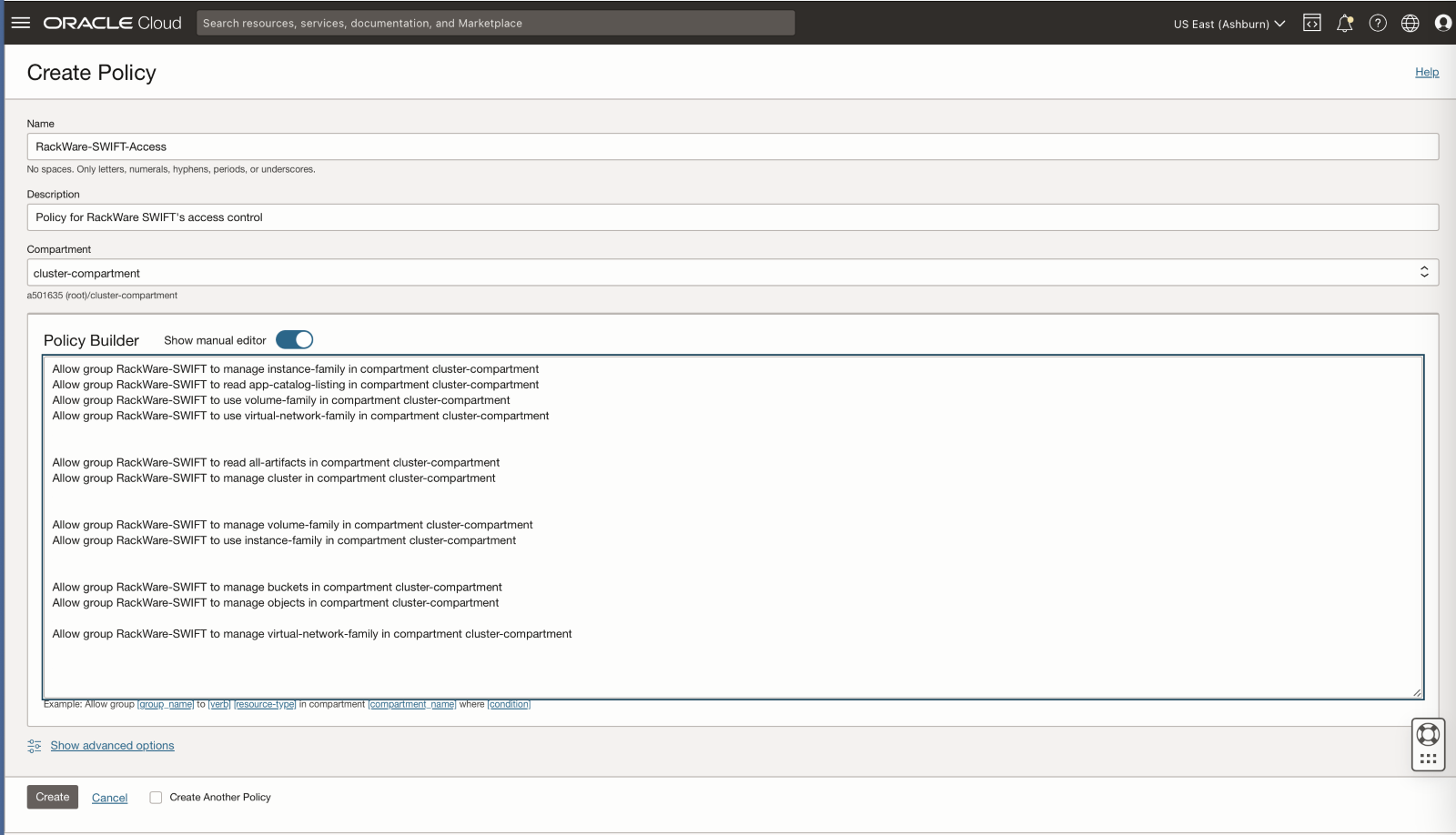

6. For the new ‘Create Policy’ wizard, give policy a name and description. Then enable ‘Show manual editor’ slider. It will show you a textbox to edit policy rules that you can use to enter rules shown below.
7. In the policy editor textbox for rules, you will enter below rules. Note that some rules are optional depending on use-cases needed with the SWIFT. Replace ‘{group name}’ and ‘{compartment name}’ in below rules with user group created earlier and compartment name where OKE clusters are located respectively.
Instance access control rules - Mandatory
Allow group {group name} to manage instance-family in compartment {compartment name}
Allow group {group name} to read app-catalog-listing in compartment {compartment name
Allow group {group name} to use volume-family in compartment {compartment name}
Allow group {group name} to use virtual-network-family in compartment {compartment name} Storage access control for snapshots rules - Mandatory
Allow group {group name} to manage instance-family in compartment {compartment name}
Allow group {group name} to read app-catalog-listing in compartment {compartment name}
Allow group {group name} to use volume-family in compartment {compartment name}
Allow group {group name} to use virtual-network-family in compartment {compartment name} Storage access control for snapshots rules - Mandatory
Allow group {group name} to manage volume-family in compartment {compartment name}
Allow group {group name} to use instance-family in compartment {compartment name} Sync to/from OKE cluster rules – Mandatory
Allow group {group name} to read all-artifacts in compartment {compartment name}
Allow group {group name} to manage cluster in compartment {compartment name}
Allow group {group name} to manage instance-family in compartment {compartment name}
Allow group {group name} to manage volume-family in compartment {compartment name}
Allow group {group name} to use virtual-network-family in compartment {compartment name}
Allow group {group name} to manage objects in compartment {compartment name}
Allow group {group name} to inspect instance-family in compartment {compartment name} Backup to Object storage control rules – Only needed if you are planning to backup to OCI Object Storage with SWIFT
Allow group {group name} to manage volume-family in compartment {compartment name}
Allow group {group name} to manage buckets in compartment {compartment name}
Allow group {group name} to manage objects in compartment {compartment name}
Allow group {group name} to manage virtual-network-family in compartment {compartment name} OKE Dynamic cluster provisioning support rules – Only needed if you are planning to dynamically provision DR OKE clusters with SWIFT
Allow group {group name} to manage compartments in tenancy
Allow group {group name} to manage vcns in compartment {compartment name}
Allow group {group name} to manage subnets in compartment {compartment name}
Allow group {group name} to use vnics in compartment {compartment name}
Allow group {group name} to use private-ips in compartment {compartment name}
Allow group {group name} to manage public-ips in compartment {compartment name}
Allow group {group name} to use cluster-node-pools in compartment {compartment name}
Allow group {group name} to inspect instance-family in tenancy
Allow group {group name} to manage cluster-family in compartment {compartment name} Oracle Container Registry (OCIR) sync rules – Only needed if you are planning to sync to/from Oracle OCI Container Registries (OCIR) with SWIFT
Allow group {group name} to manage volume-family in compartment {compartment name}
Allow group {group name} to manage buckets in compartment {compartment name}
Allow group {group name} to manage objects in compartment {compartment name}

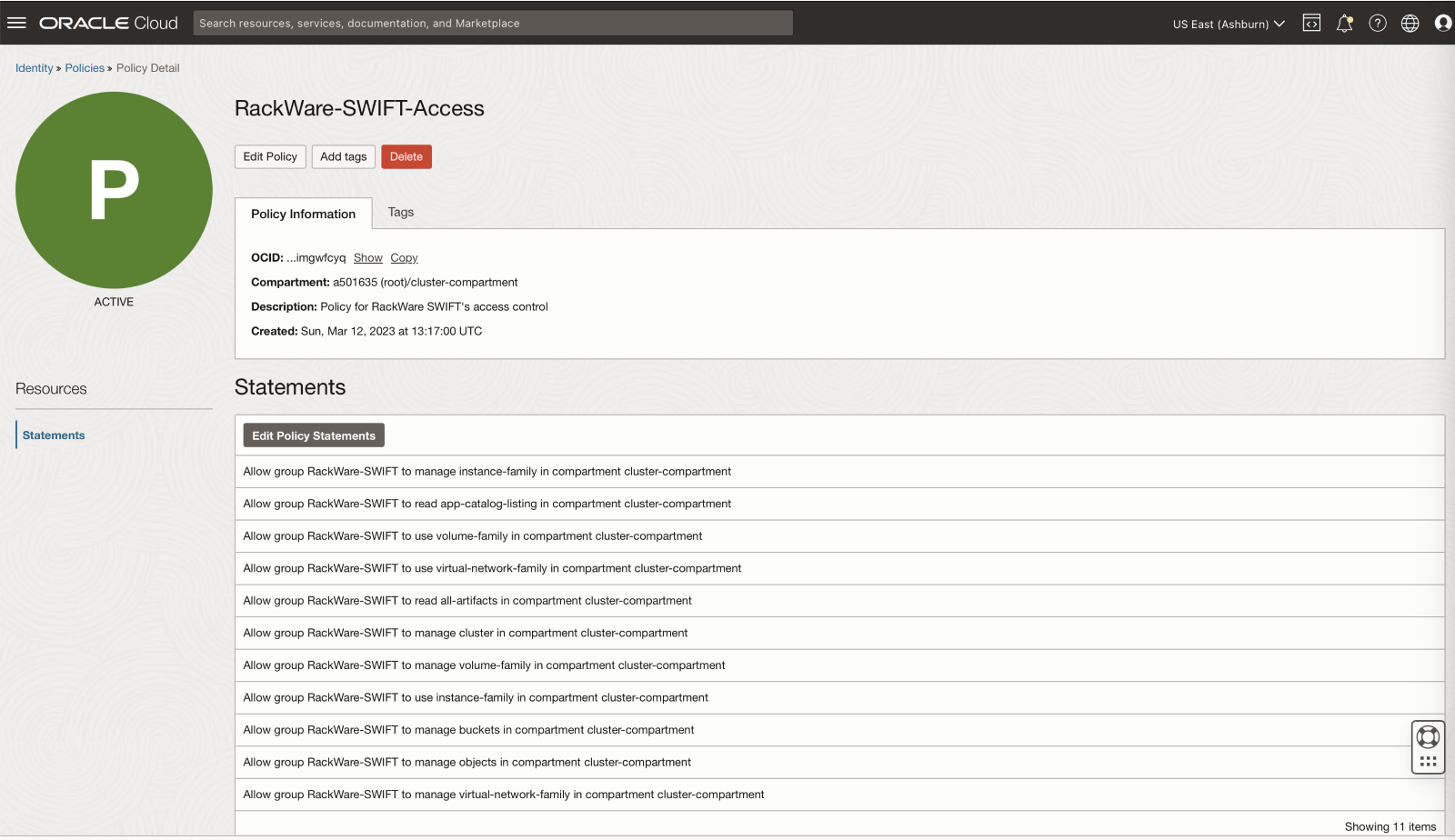

Allow group {group name} to manage virtual-network-family in compartment {compartment name} 8. Once you enter required rules above, create the policy.
9. Let’s now create a User and add it to the Group created earlier, where we also applied access policy now..

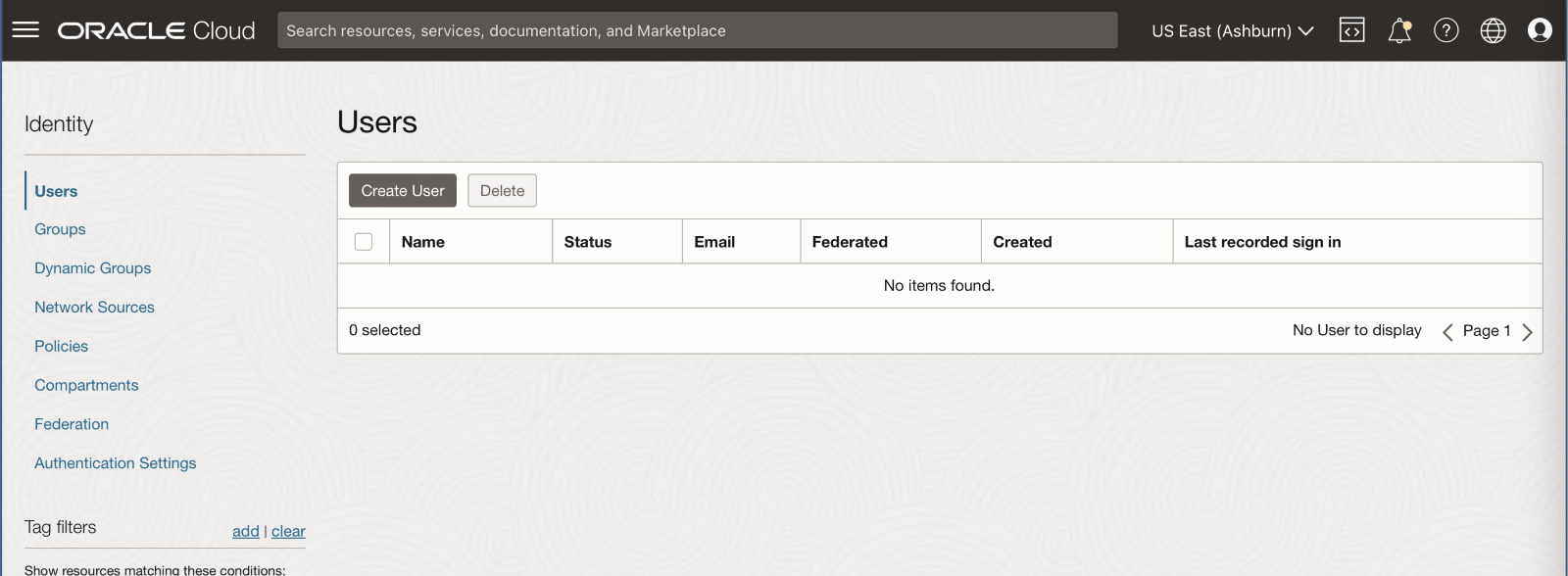

From the Identity menu, select the Users submenu.

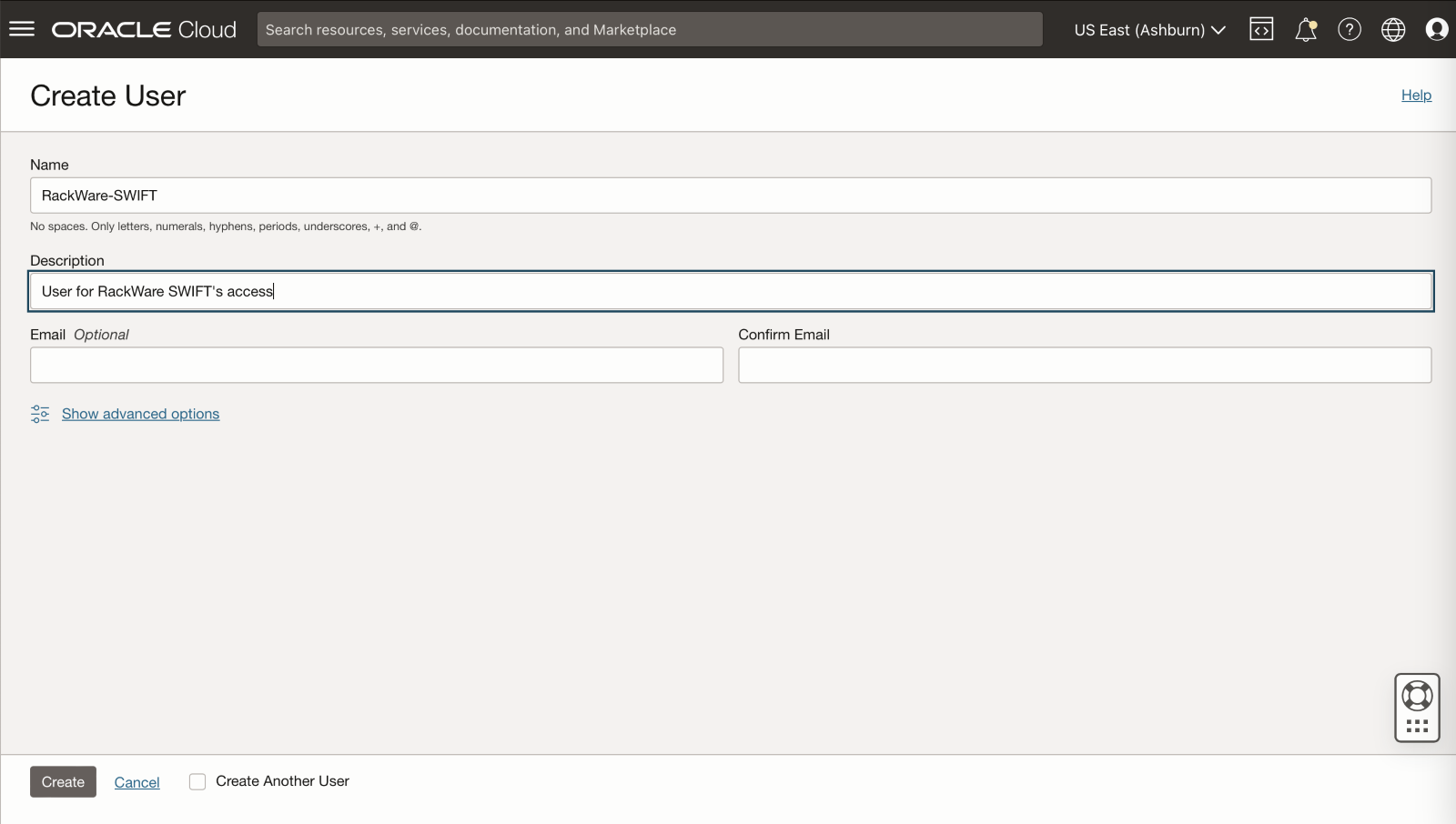

10. Select the ‘Create User’ option. Then on new user creation wizard, set name and description for the User. We will use ‘RackWare-SWIFT’ as a name in the example case.

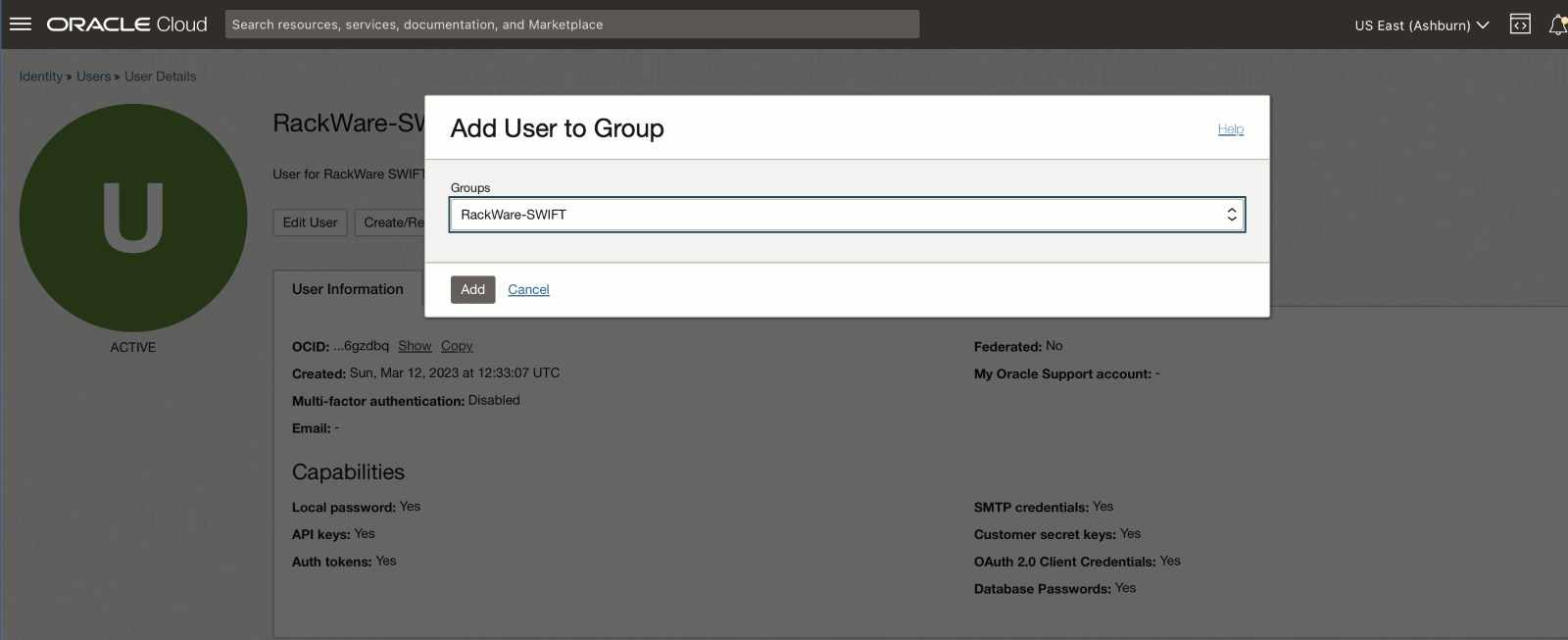

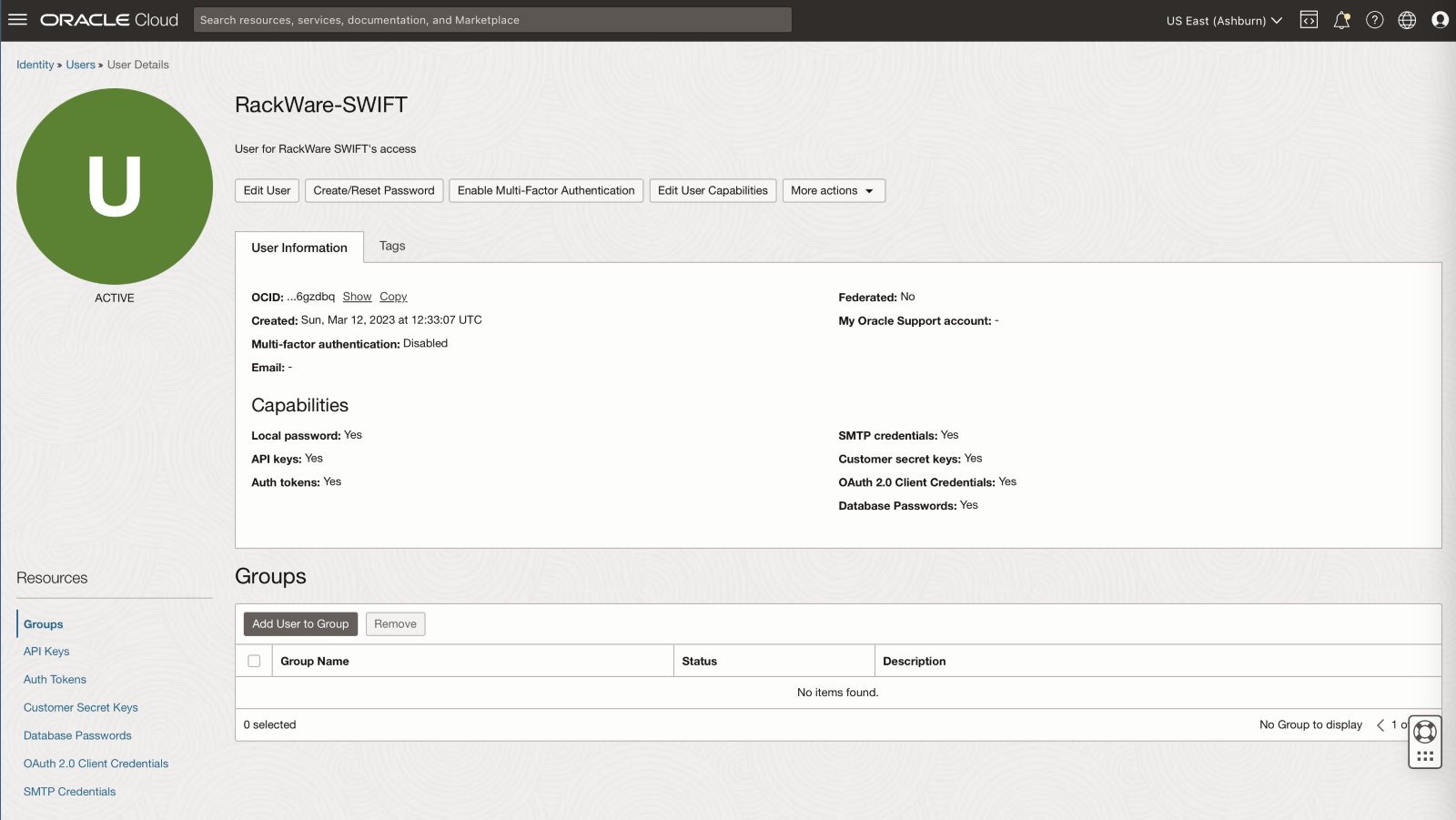

11. Once the user is created, select ‘Add User to Group’ option from the Groups tab.
12. Add it to the ‘RackWare-SWIFT’ group created earlier in the flow, where new policy is also applied. Adding user to this group would restrict this user’s access to OCI with the earlier applied restrictive policy.

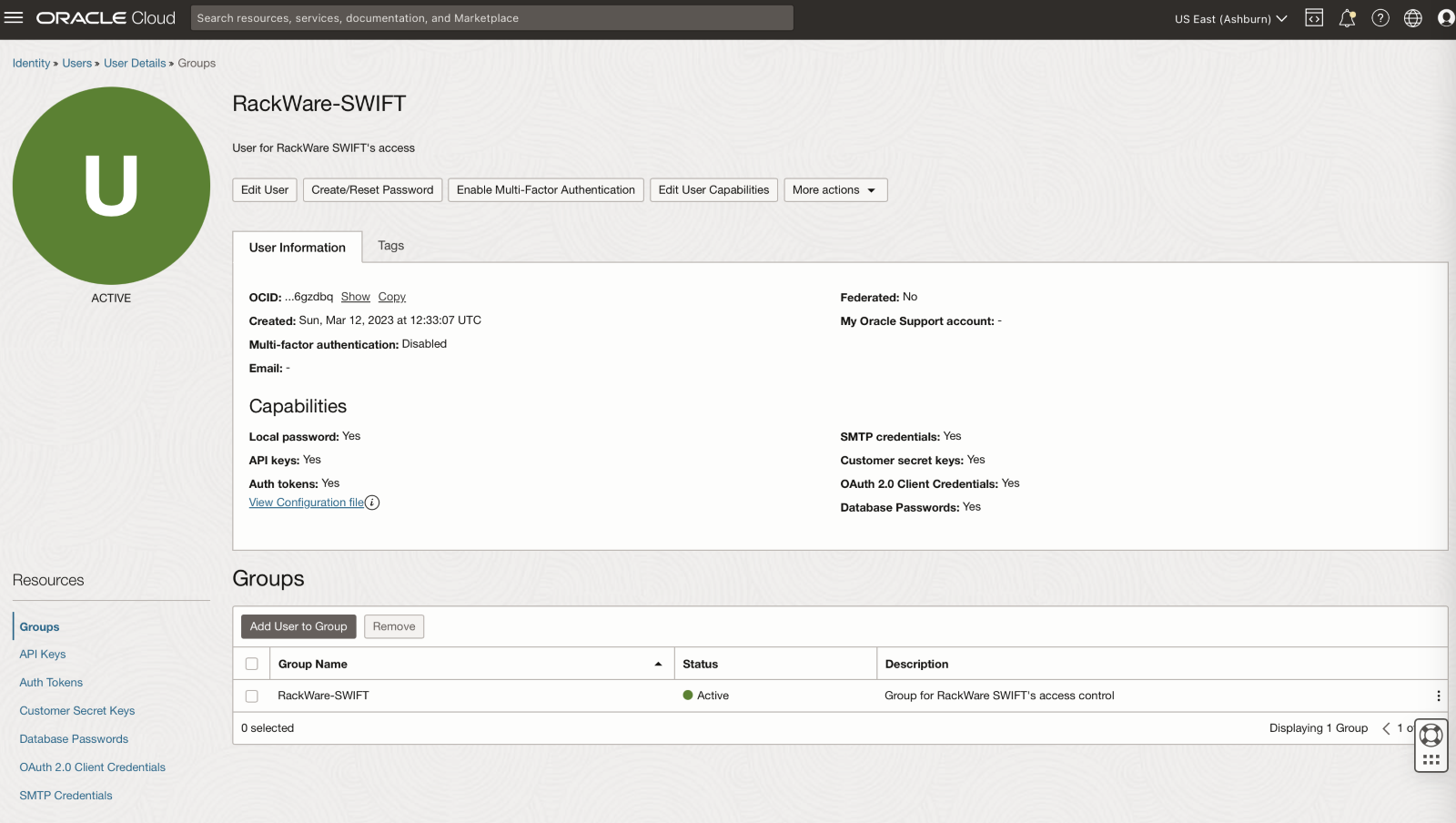

13. Once the user is added to the group, you will see the new group listed in the Groups tab.
14. Now, let’s generate an API key for the user that later you will use with SWIFT for OKE cluster discovery, OCIR syncs, OCI object storage addition to SWIFT, or OKE dynamic provisioning configuration in SWIFT.

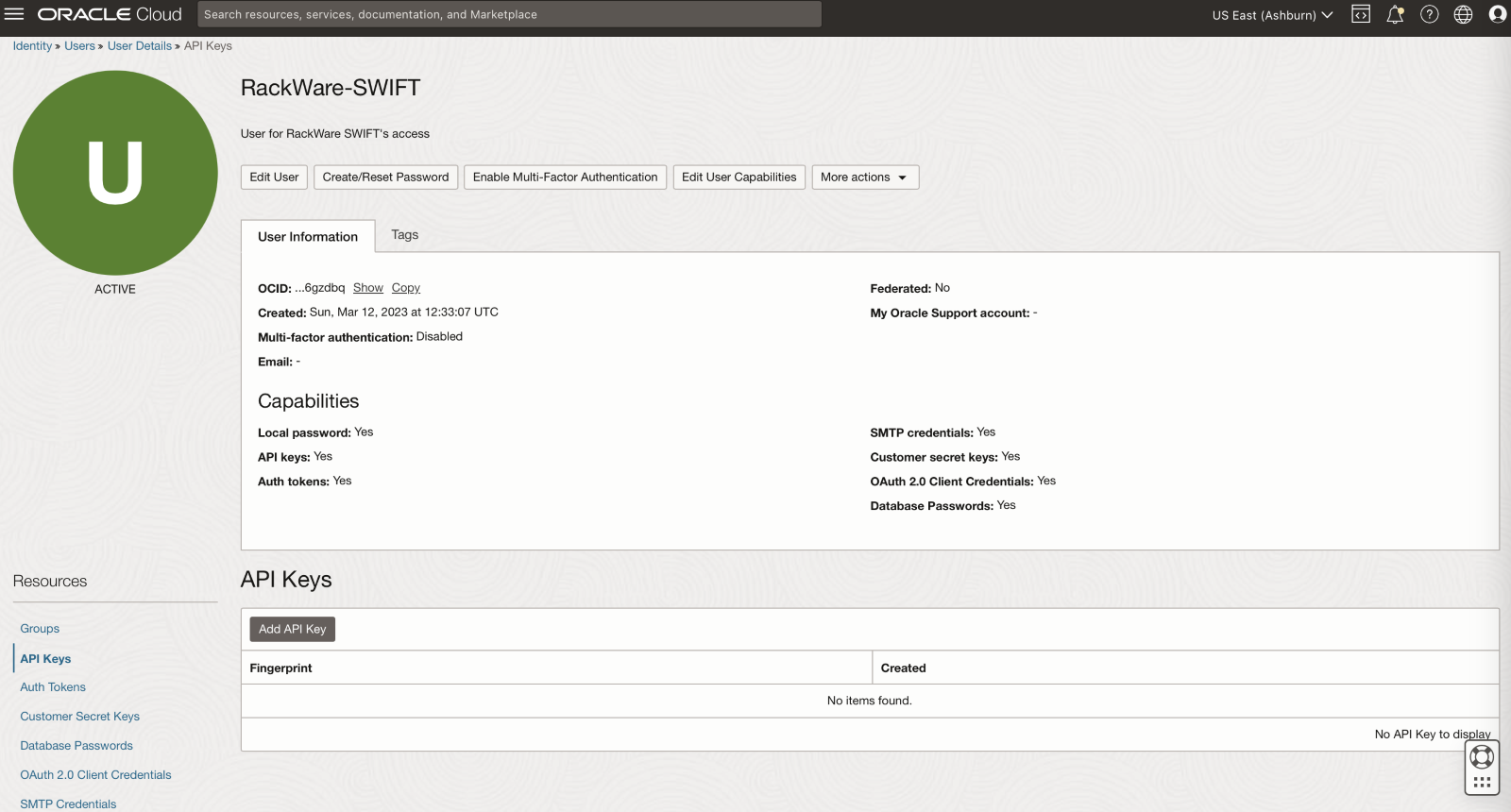

Click on the ‘API Keys’ tab under user configuration page.

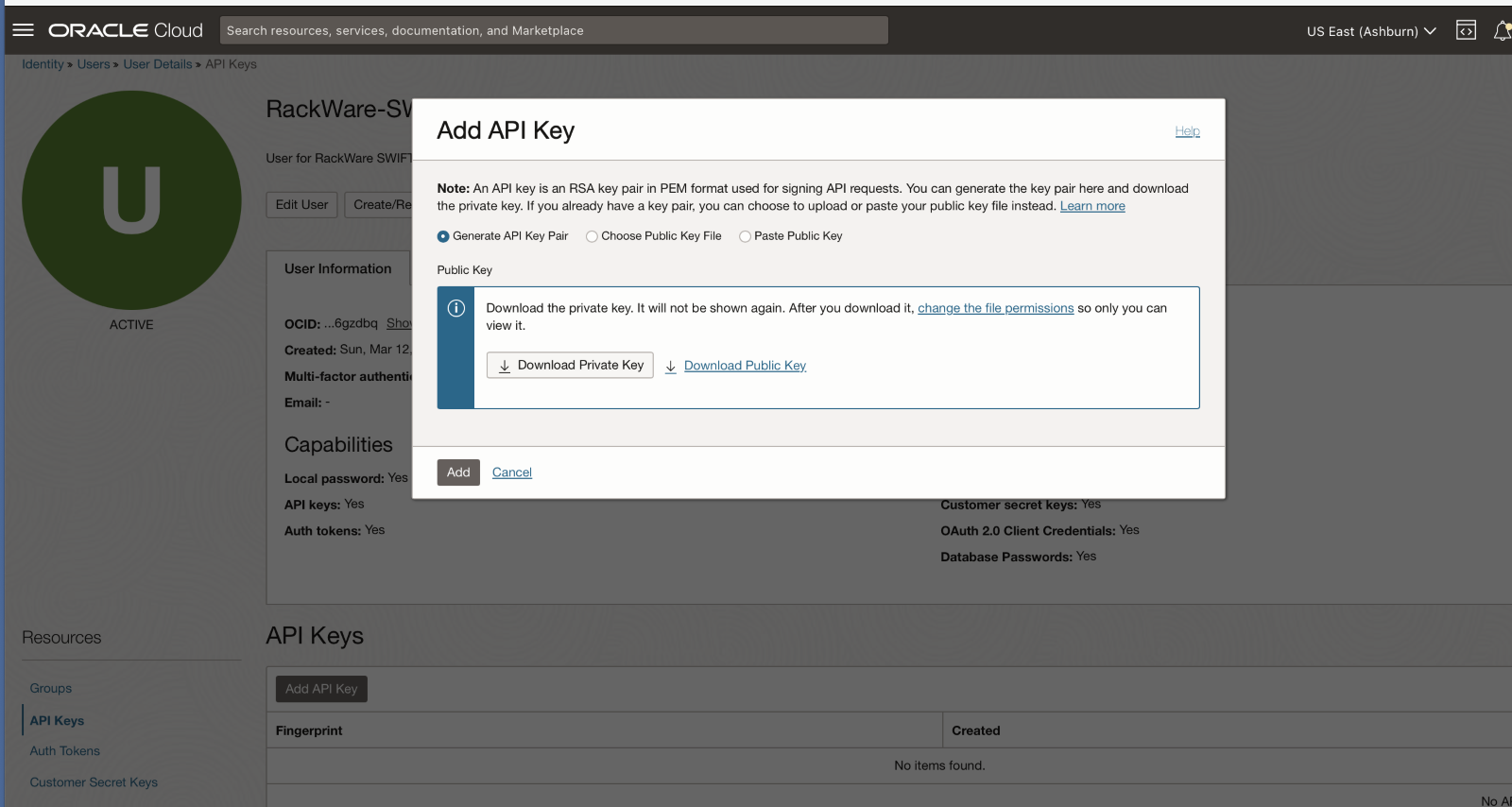

15. Select 'add API Key’ button. On the new key wizard, you can either upload keypair or let OCI generate one for you. Make sure to download both keys if you let OCI generate keypair for you, as you can't letter download these keys later.

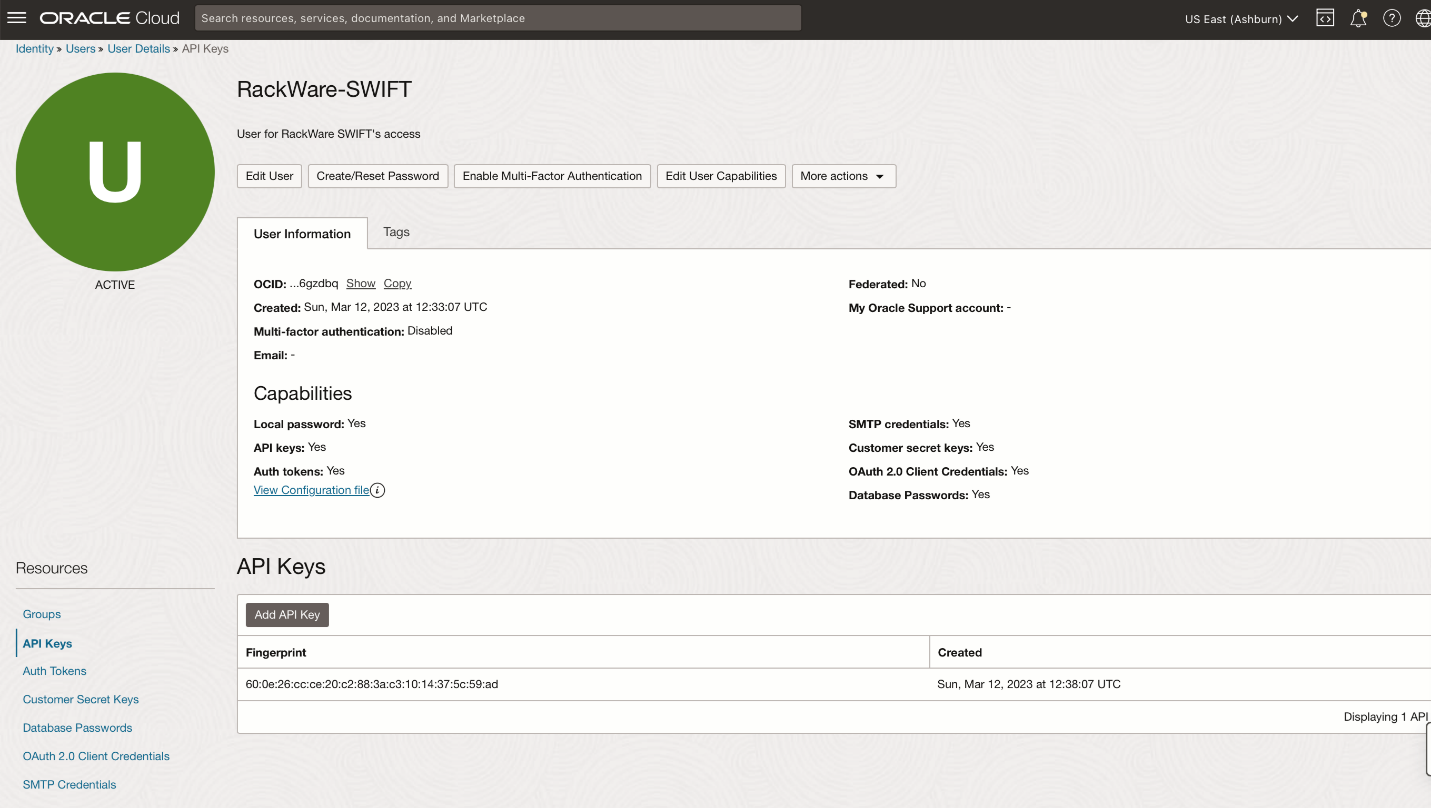

16. Note the generate key's fingerprint too, as you will later need it for various OKE/OCIR specific configurations in SWIFT, including OKE/OCIR cluster discovery.
17. That’s it! You can now use the generated API key and fingerprint along with other details like compartment id and user id with SWIFT to discover an OKE cluster or sync OCIR registries under the OCI account. The new API key will have same access that access policy we created and applied above for the new allow users.
