The Disaster Recovery (DR) Policy provides a structured approach to maintain business continuity during unexpected outages, disasters, or critical failures. DR Policy is simple configuration where it tells frequent sync.
The purpose of a DR policy is to define when and how your application data should be backed up (Stage 1) and/or restored to the target cluster (Stage 2) for disaster recovery

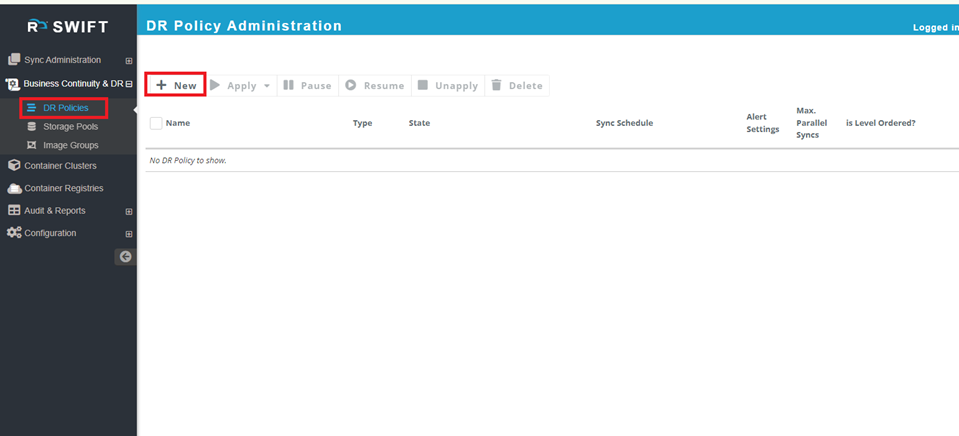

1. To create a DR policy, you need to log in to the SWIFT dashboard and navigate to the ‘DR Policy’ under the Business Continuity & DR menu and click on ‘New’ button. Please see below screenshot.

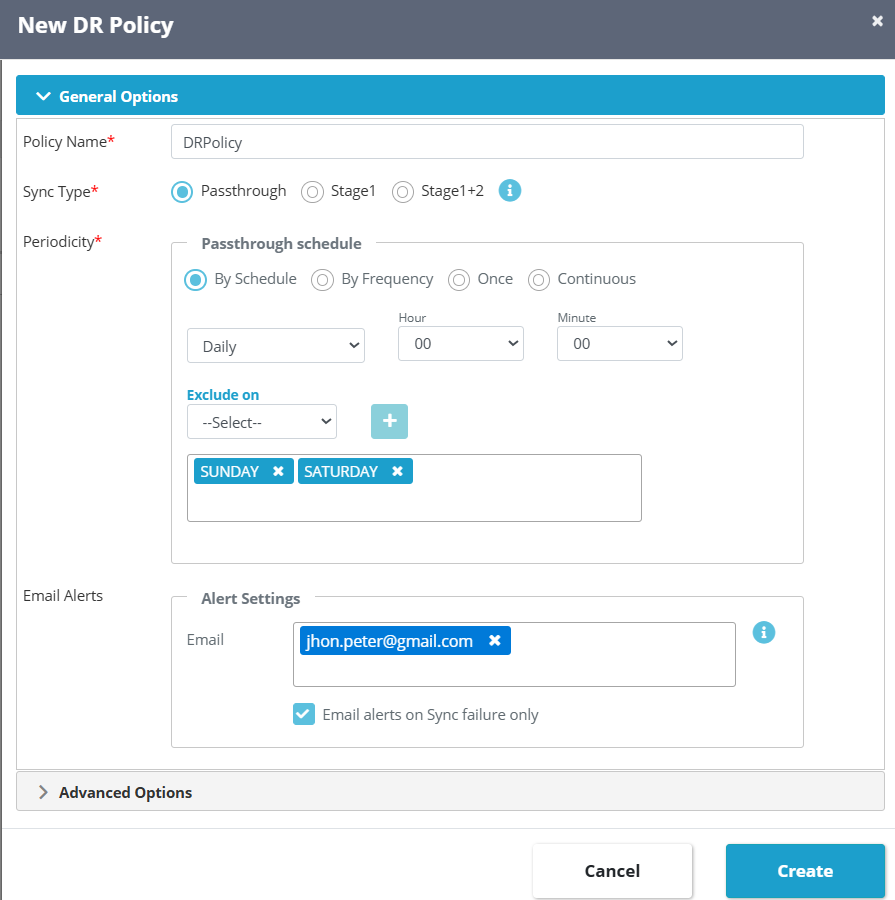

2. After a click on ‘New’ you will get a new prompt to create a DR policy by selecting Sync type. Please check the screenshot below for more details. So, based on the requirement you can select the sync type and set a frequency. Add screenshot.
| Field Name | Field Description |
| Policy Name | The name of the sync policy you create . |
| Sync type | The kind of sync you want to perform: Passthrough: It just migration Stage1: Data will be moved from source to SWIFT Stage2: Data will be moved from SWIFT to target |
| Periodicity | How often the sync should run. 1. By schedule: Run daily or weekly at a set time. 2. By Frequency: Run every few minutes (e.g., 5 min, 10 min). 3. Once – Run at a specific time, triggers DRP once. 4. Continuous – Runs continuously, triggering DRP one after another. 5. Exclude on: You will get an option when you want to exclude. e.g. Sunday, Monday, etc. |
| Email Alert | Email Alert – If you provide an email address, you will receive notifications for every successful and failed DRP event. If you select 'Sync Failure Only,' you will receive notifications only when a sync fails. |

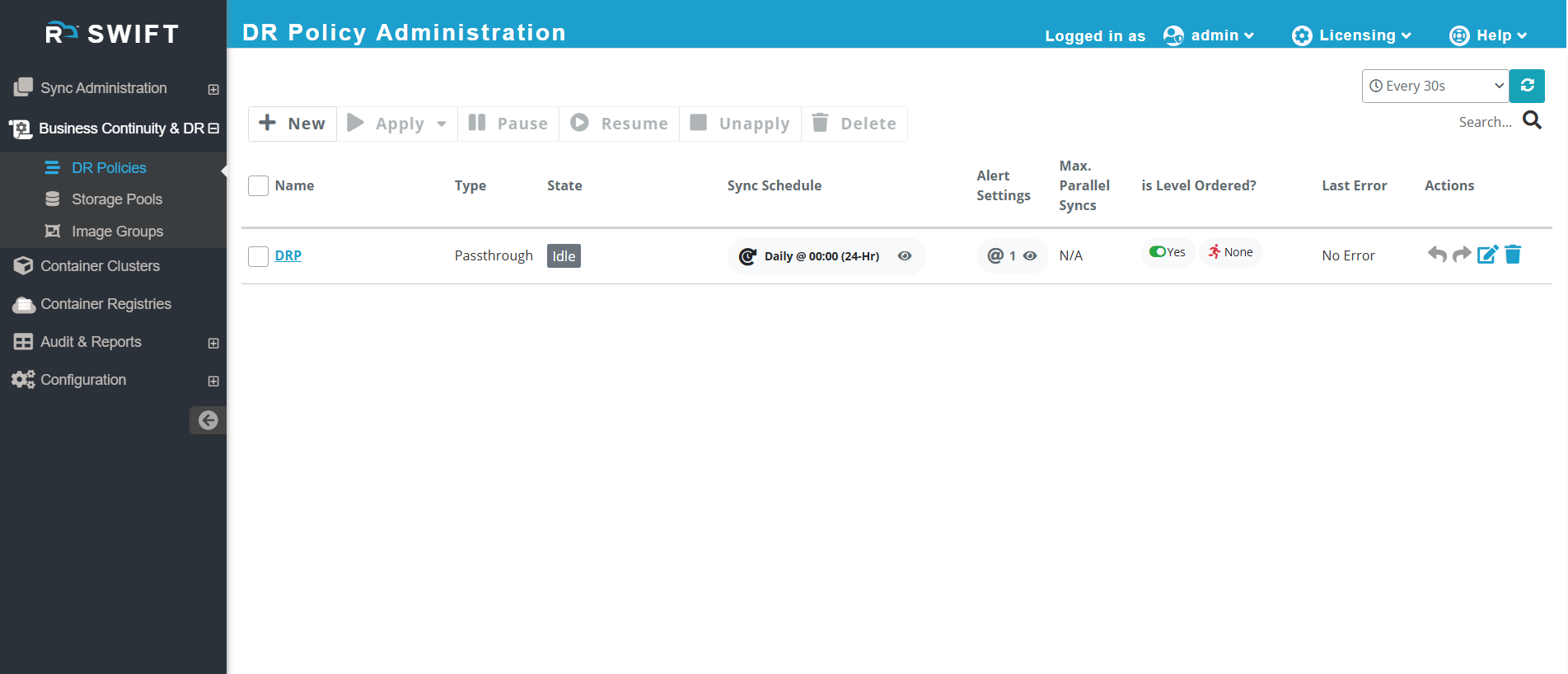

3. Once you click on 'Create' button, Policy will be created with IDLE state then you can see as below. Please check screenshot below.
4. Now apply the DRP. Please follow below KB link.
https://rackware.freshdesk.com/a/solutions/articles/5000891529?lang=en
5. You can check below KB Article if you want to create a DR Policy for stage1 and stage2 sync.
