For any migration or disaster recovery (DR) activity, the first step is to discover the cluster in SWIFT. Discovery allows SWIFT to identify and register the cluster along with its associated resources such as namespaces, workloads, and other objects. Only after the cluster is successfully discovered, you can proceed with operations like syncing applications, or performing the actual migration or failover tasks.
Pre-requisite:
1. . To discover the GCP OpenShift container platform cluster, you must have a cluster created in the GCP cloud and know the region where the cluster is deployed.
2. To adding service account token. Please refer Adding OpenShift cluster service account for SWIFT section.
Following are steps to discover the GCP OpenShift cluster.

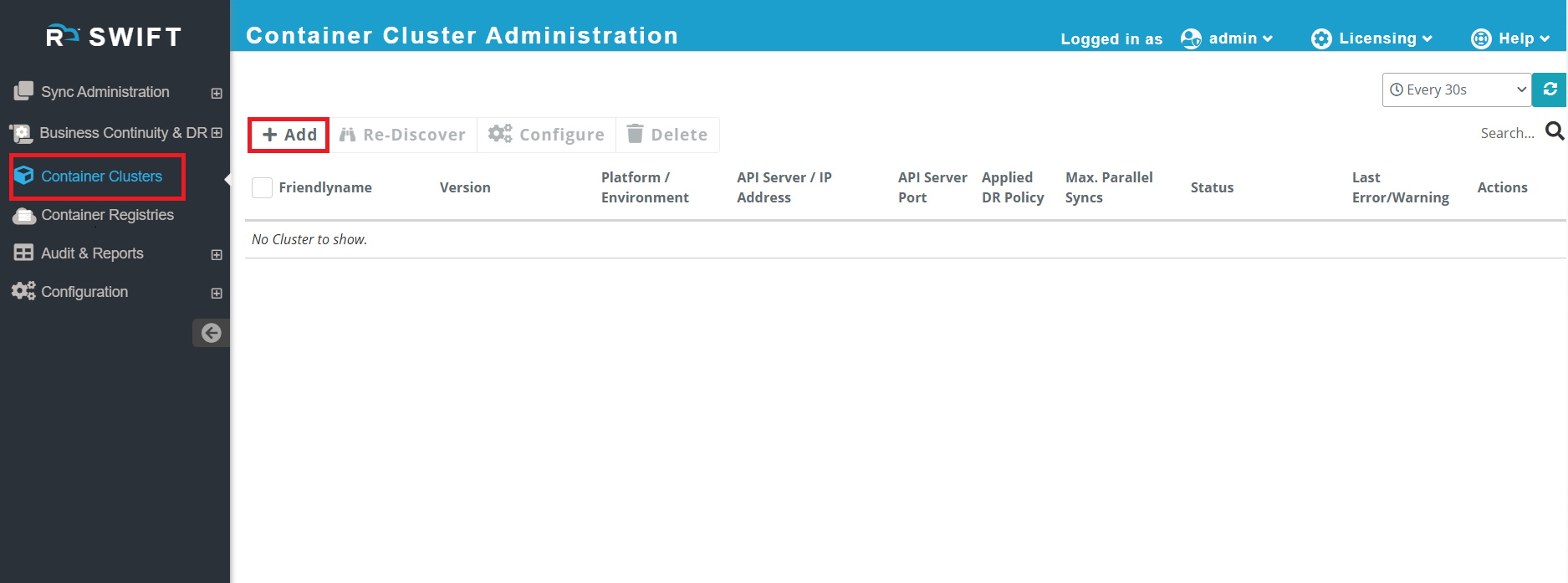

1. We need to login to the ‘SWIFT’ dashboard and navigate to the ‘container cluster’ menu and click on ‘Add’ button. Please check below screenshot for your reference.

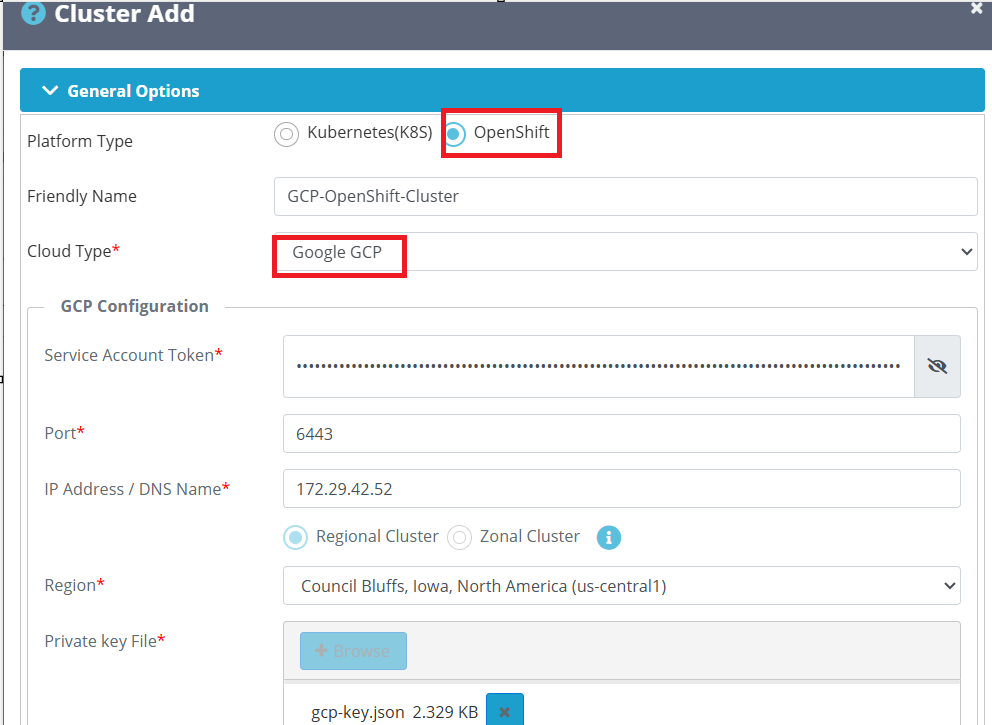

2. Once you click on 'Add ' button. It will appear Cluster Add modal/dialog. There you need to provide cluster details to be discovered. Please check below screenshot for your reference .
Field Name | Field Description |
| Platform type | Select the platform where your cluster is running |
Friendly name | You need to enter a friendly name according to your cluster or project. |
| Cloud Type | Choose the ‘cloud type’ from the dropdown as SWIFT supports various clouds |
Service account token | In an AWS OpenShift cluster, a service account token is a type of Kubernetes authentication token that is automatically created when you create a service account. |
| IP Address/DNS Name | The IP address / DNS name of your GCP OpenShift cluster API endpoint. |
| Port | This is the Kubernetes API server port |
| Region | Choose the region from the provided list that matches the region of your gcp OpenShift cluster. |
| Private key file | the private key file usually refers to either the SSH key for node access or the JSON service account key used to authenticate with GCP services like Artifact Registry. |
| TRAIPOD Config & Cluster Private IP Config | This is an optional input. They can be configured for each sync, and the values input for the sync will override the defaults set for the cluster. For more info you can look TRAIPOD KB article. To more know about Traipod Config section, Please follow below KB Article. https://rackware.freshdesk.com/a/solutions/articles/5000890139?lang=en |

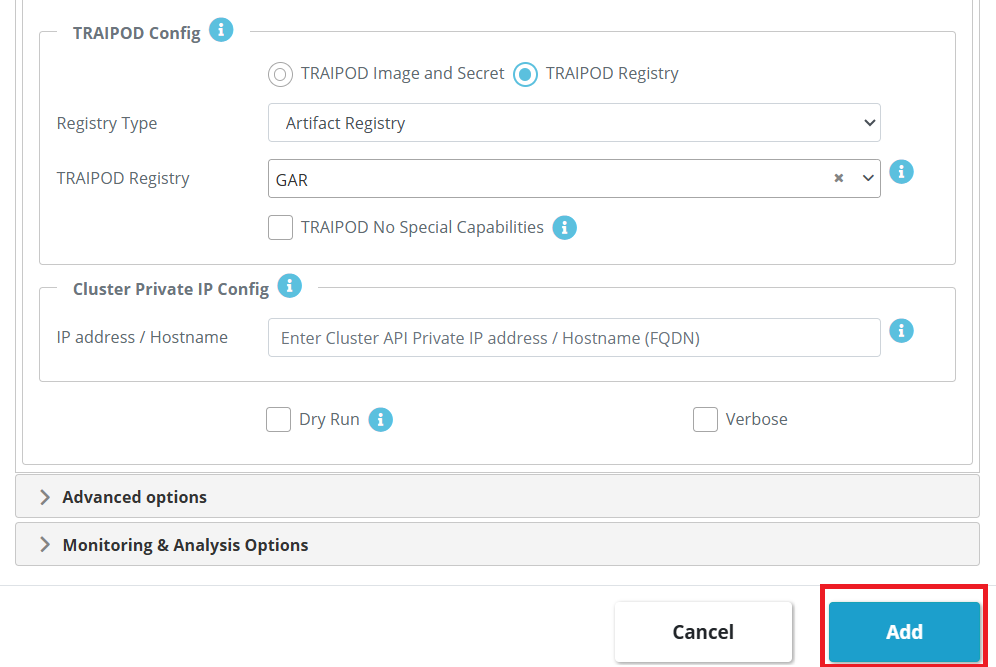

3. Now just click on 'Add' button and within few seconds, the GCP OpenShift cluster will be added. Please check below screenshot that GCP OpenShift cluster has been discovered in SWIFT.

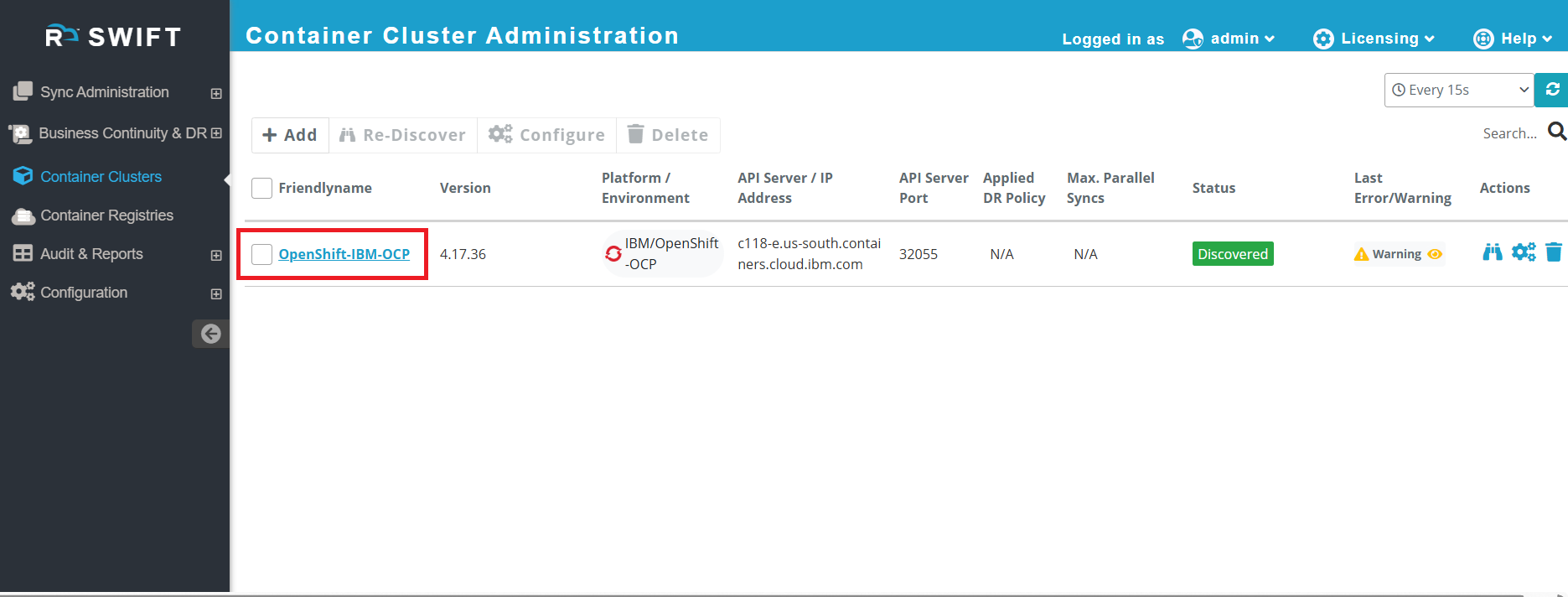

4. Once the cluster is discovered, you can view all information about the cluster and its metadata. Simply expand the cluster by clicking on it, and you will see the details. Please refer to the screenshot below.

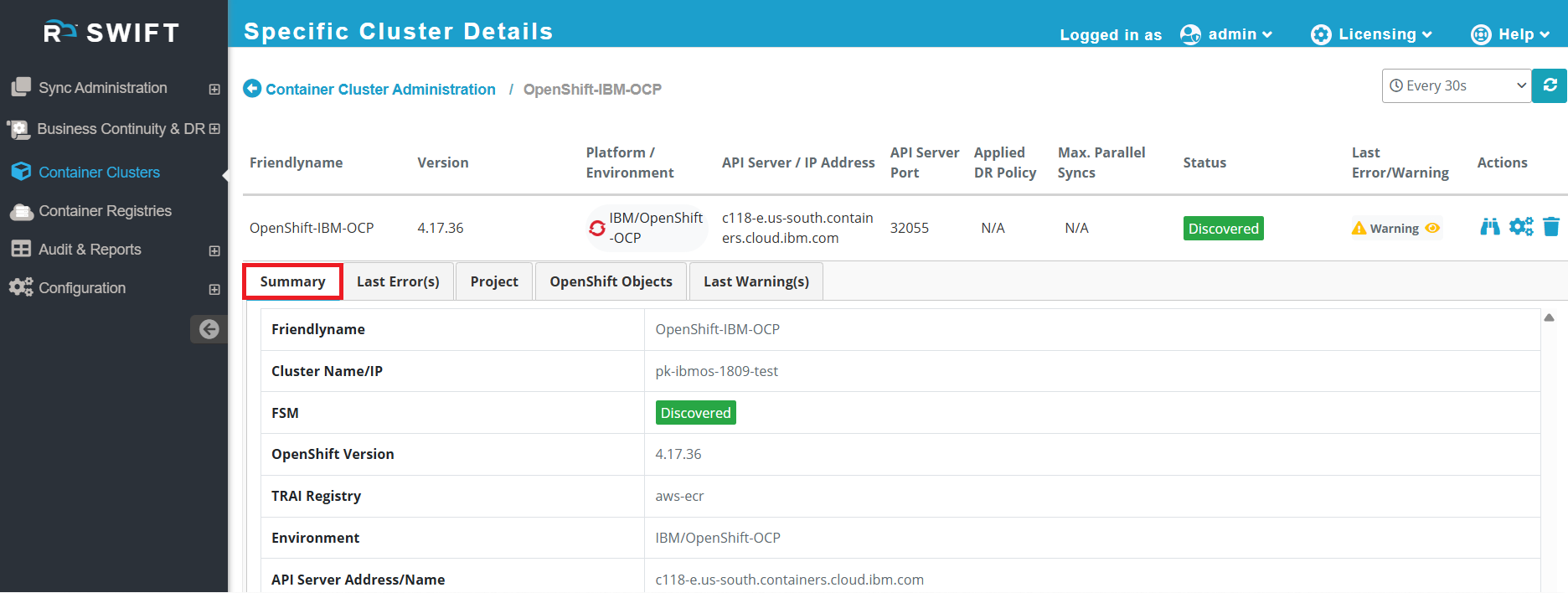

- When you go to the Summary tab, you will find information about the cluster, such as its creation date, OCP cluster name, API server port, OpenShift version, and more.

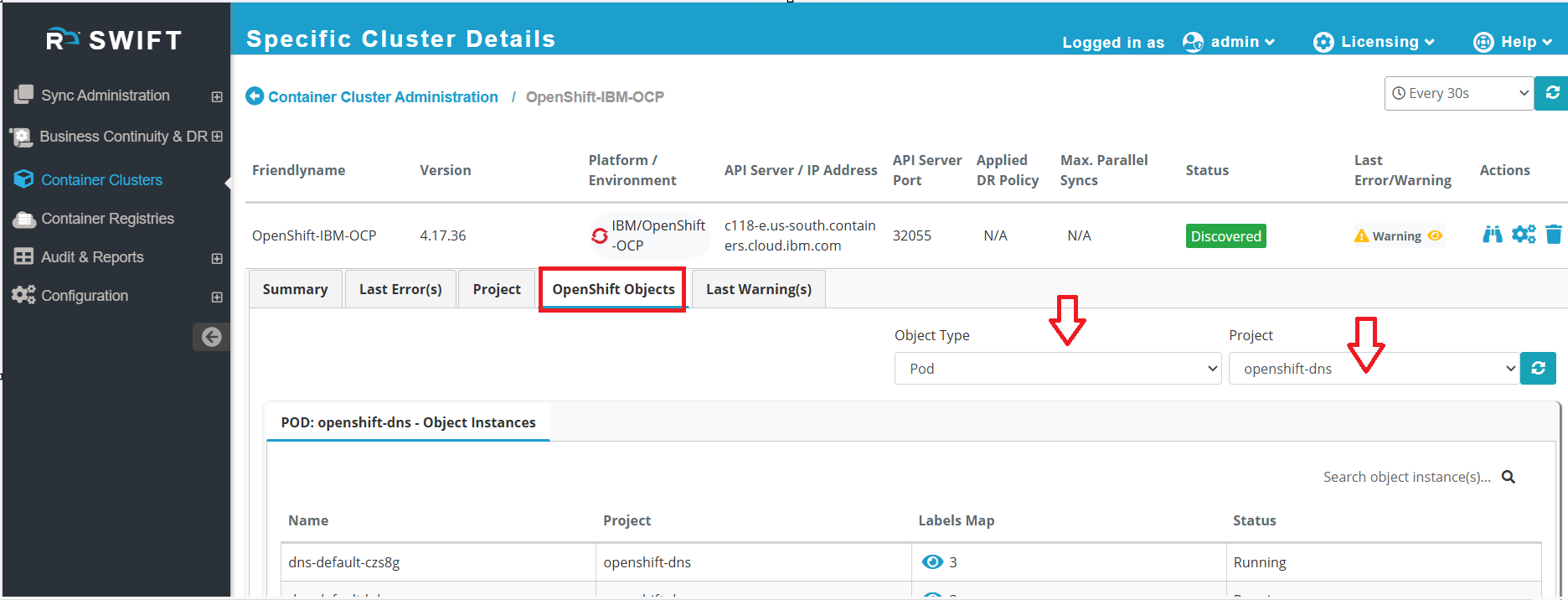

- When you go to the OpenShift Objects tab, you can view the objects running in your namespace. Simply select the object type from the Object Type tab and choose the namespace from the dropdown. This will display the objects running in that namespace on the cluster. In the screenshot below, you can see that two pods are running in the 'openshift-dns' namespace.

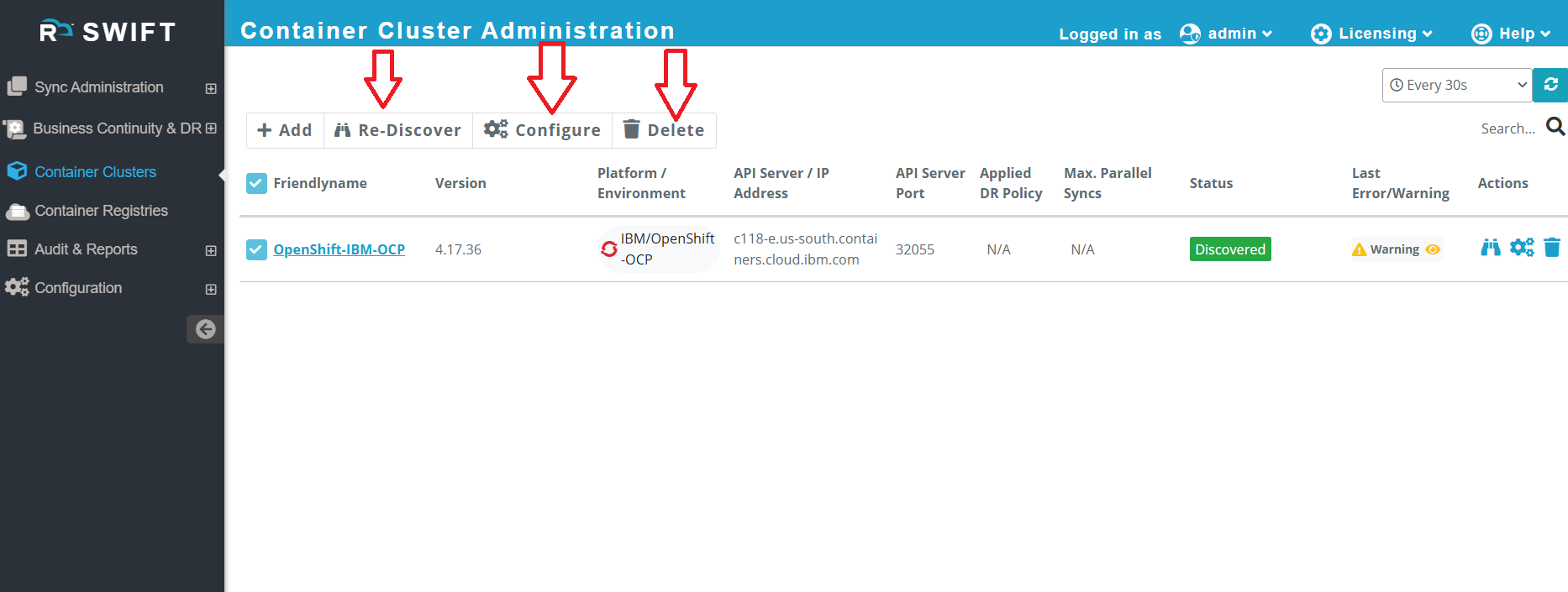

5. Once you discovered the cluster, you will get more operations of following options. You can run other operation as below for the selected discovered cluster.
- Re-Discover : This option allows you to re-discover the cluster. If you have added new namespaces or applications to the cloud cluster and want them to be reflected in the SWIFT portal, you can re-discover the cluster. Please refer to the link below for detailed steps on how to re-discover a cluster.
<link>
- Configure : Use this option if you want to modify the cluster configuration. Please check KB Article on 'Configure the cluster'
https://rackware.freshdesk.com/a/solutions/articles/5000897684?lang=en
- Delete : Use this option to delete the cluster. However, ensure that no DR Policy is attached to the cluster; otherwise, the cluster cannot be deleted and the Delete option will be disabled. It will delete from SWIFT dashboard only not from cloud.
What next:
- Now that the clusters are discovered, you may want to set up a Migration or Disaster Recovery (DR) job. Then follow below KB links.
Passthrough sync:
Stage sync:
